Description
Detail Information
| Payment Terms: T/T, XT, Paypal, Western Union | Supply Capacity: 500 pieces/month | Applicable Industries: Machinery Repair Shops, Retail, Construction, Energy, Mining |
| Category: Cab Assembly | Application: For XCMG Earthmoving Machinery Excavators | Highlights: Excavator Replacement Parts, Excavator Cab Components |
| Shipping: Sea freight / Air freight |
Note: The application information provided is for reference only. Please confirm the part number and compare it with the old component before purchasing. If you have any questions, please feel free to contact us.
It is worth choosing a product that features stable performance, high reliability, easy installation, and quick response.
1. The Silent Killer of Mini Excavator Cabs: Rust and Moisture – How We Fight It
The XCMG 60DA works in mud, rain, humidity, and chemical-laden environments (fertilizer, salt water, concrete slurry). Most cab failures start not with a crash, but with a tiny rust hole or a failed seal. Once moisture gets inside, the cab deteriorates fast: fogged glass, musty smell, electrical issues, and eventually structural weakness.
Below is a side-by-side comparison of how an average replacement cab handles moisture vs. our XCMG 60DA cab. The differences are small in photos but massive after one rainy season.
| Moisture Attack Point | Average Replacement Cab | Hongtengda XCMG 60DA Cab |
|---|---|---|
| Roof gutter seam | Spot-welded, painted over | Seam-welded + polyurethane sealer (flexible, UV-resistant) |
| Floor pan water pooling | Flat design – water sits | 4 drain slots + 2° slope toward rear – water runs out |
| Door seal corner joint | Butt-cut – water enters at corners | Molded one-piece seal on upper half; lower corners vulcanized |
| Windshield rubber channel | Dry-fit – may leak after 6 months | Pre-applied butyl sealant under rubber – no capillary action |
| Harness entry holes | Customer drills – no grommet | Pre-punched with rubber grommet (20mm) – sealed tight |
| Painted edges (cutouts) | Raw metal exposed | Edge-primed with anti-rust pen – every hole protected |
| Hardware (bolts, washers) | Zinc-plated (rusts in 1 year) | Geoment coated (salt spray 500h) + anti-seize paste |
Result: Our cab stays dry inside. No musty smell. No electrical gremlins from water dripping onto the fuse box. Your operator stays comfortable and healthy.
2. What Happens When Moisture Wins – Real Failure Photos (Described)
We have replaced dozens of XCMG 60DA cabs that failed from moisture. Here is what we see most often:
| Failure | Typical Age | Consequence |
|---|---|---|
| Roof rust-through above operator | 5–7 years | Water drips onto seat, controls, operator’s neck – machine sidelined |
| Floor pan holes near pedals | 6–8 years | Mud sprays up from tracks into cab – impossible to keep clean |
| Door lower corner blown out | 8–10 years | Door skin separates – wind noise, dust intrusion, eventual door failure |
| Windshield seal leak | 4–5 years | Fogged glass, water damage to dashboard electronics |
Our cab prevents all of these. You are not just buying a shell – you are buying years of dry operation.
3. Pre‑Shipment Moisture Test – We Prove It Before Shipping
We do not guess whether your cab will leak. After assembly, every XCMG 60DA cab goes through a 10‑minute water spray test:
Spray bar with 10 nozzles (simulates heavy rain)
Cab tilted 5° to simulate machine parked on slope
Test covers: windshield, side windows, door seams, roof gutter, floor pan drain holes
Pass criterion: Zero water inside after 10 minutes. No drips. No damp spots.
📹 You receive a video of the test before we pack. You see it pass with your own eyes.
4. Installation Tips for Maximum Moisture Protection
Even the best cab can fail if installed poorly. We include these instructions with every shipment:
| Step | What to Do | Why |
|---|---|---|
| 1. Clean chassis mounting surface | Remove old sealant, rust, dirt | Ensures cab sits flat – no gaps for water |
| 2. Apply sealant to bolt holes | Use included polyurethane sealant on each bolt shank | Prevents water wicking up through threads |
| 3. Install drain hose (if equipped with AC) | Route downward, not looped | Condensate flows out, not into cab |
| 4. Check door close force | Adjust striker until door closes with light push | Prevents seal crushing and air leaks |
| 5. Re‑grease hinges after 1 week | Use lithium grease on both hinge pins | Bedding-in period – keeps door aligned |
We also offer a one‑page illustrated guide – ask for it before your mechanic starts.

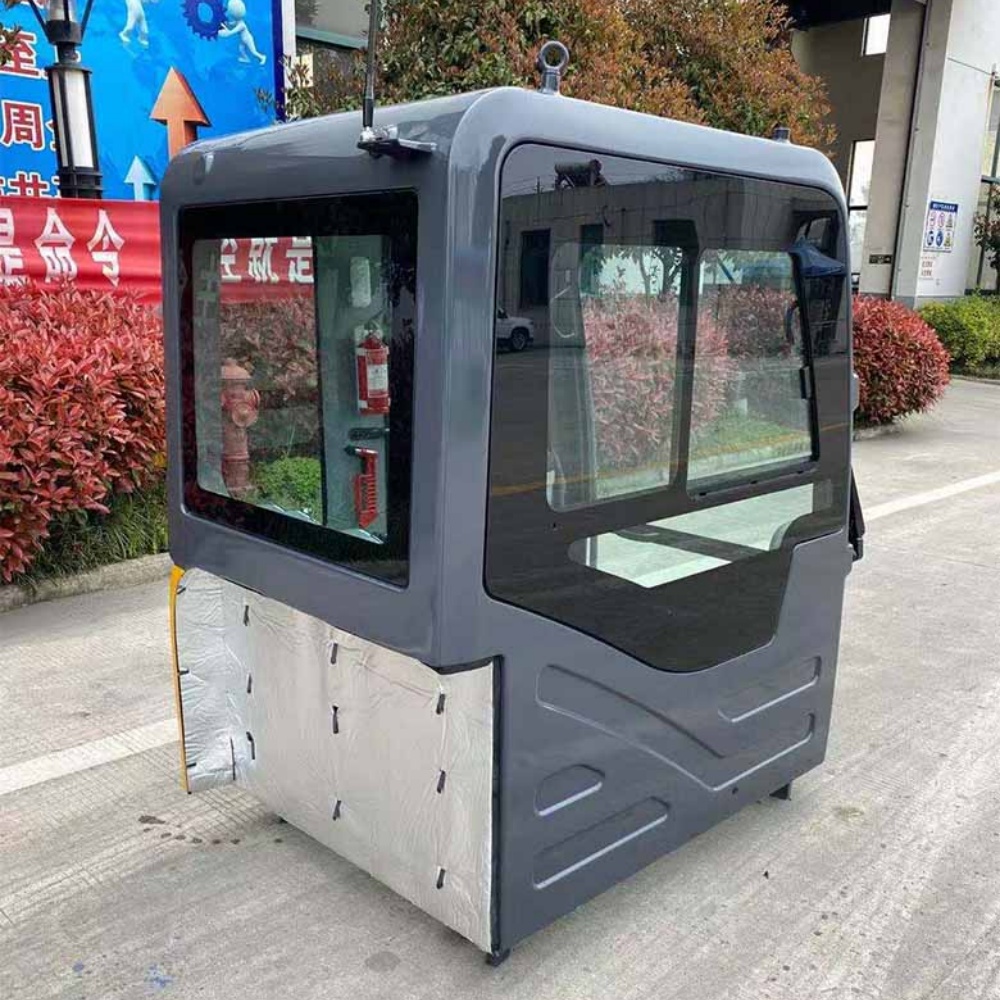

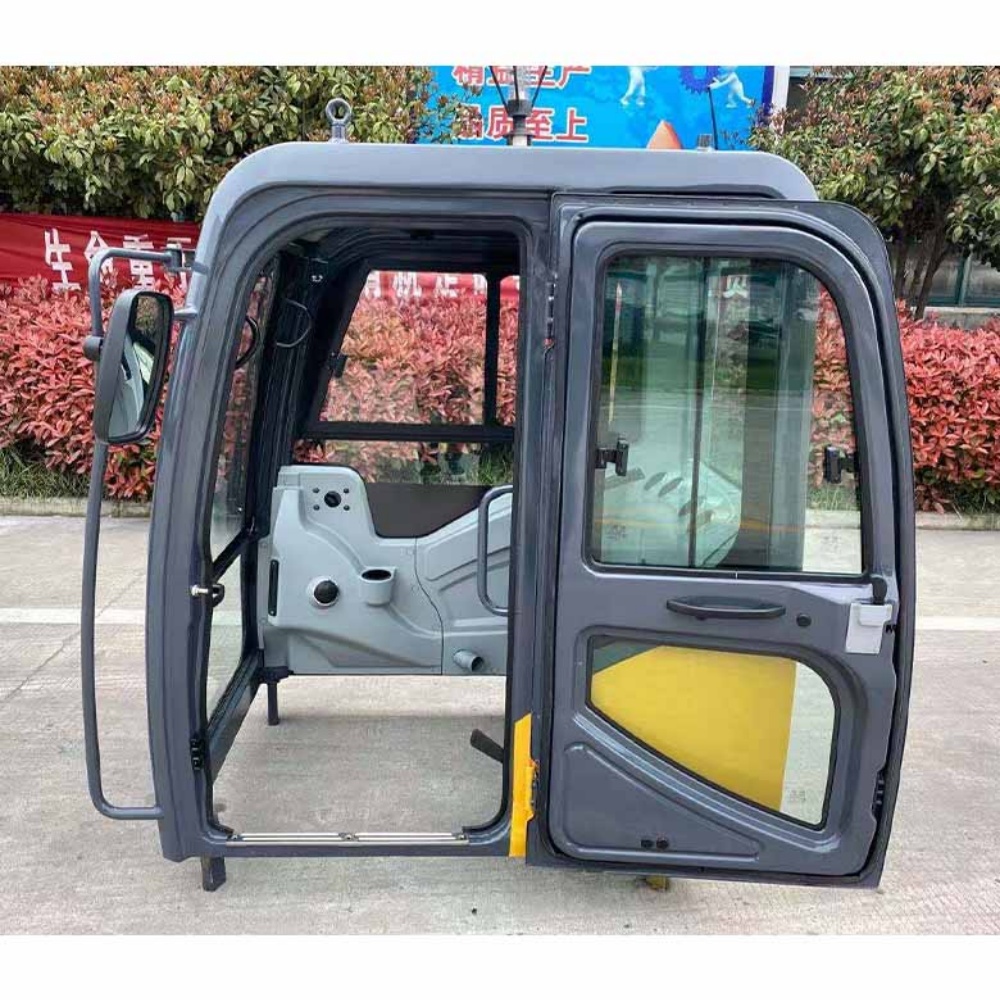

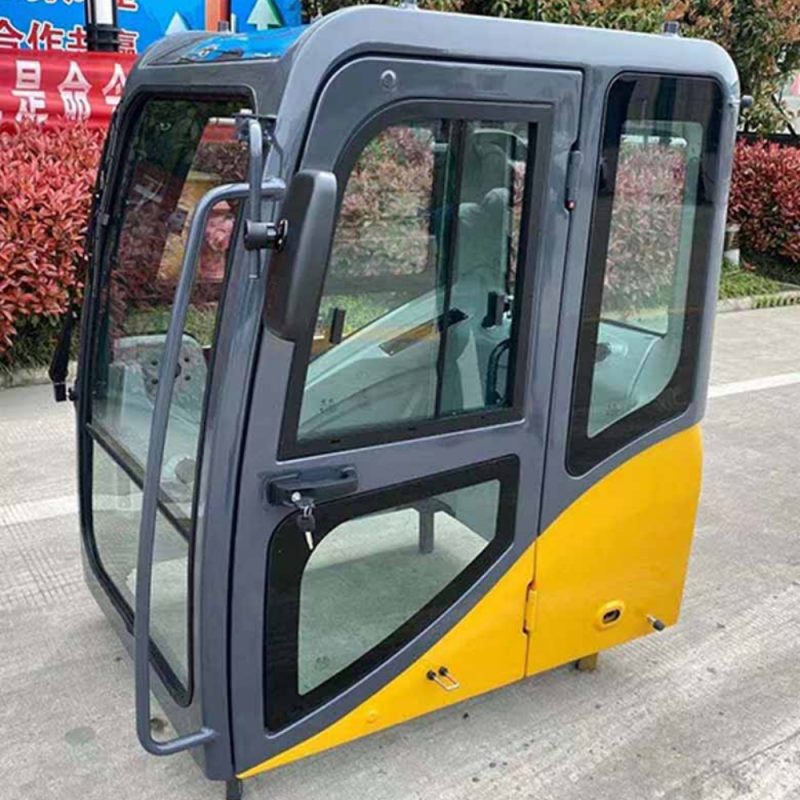

5. Product Contents – Exactly What You Receive
| Component | Included | Note |
|---|---|---|
| Cab shell (roof, pillars, floor) | ✅ | Q345B steel, 2.0mm (roof), 2.5mm (pillars) |
| Front curved windshield | ✅ | Tempered, with rubber seal + butyl underlay |
| Rear window (fixed) | ✅ | Flat tempered glass, seal installed |
| Left & right door shells | ✅ | Hinges pre-welded, striker plate adjustable |
| Side windows (left fixed, right fixed) | ✅ | Both with rubber seals |
| Rubber floor mat | ✅ | Full coverage, raised edges, drain slots aligned |
| Mounting bolt kit | ✅ | Geoment coated, with anti-seize paste |
| Sealant tube | ✅ | Polyurethane (black) for bolt holes |
| Installation guide | ✅ | A4 sheet with torque specs + sealant points |
Not included (optional): Seat, AC unit, wiper motor, interior trim, wiring harness.
6. Ordering & Delivery
| Item | Detail |
|---|---|
| MOQ | 1 piece |
| Lead time | 6–8 working days after approval |
| Packaging | Wooden case (ISPM15) with corner foam + plastic wrap |
| Delivery | Sea freight (18–45 days depending on destination) or air freight |
| Payment | T/T, XTransfer, PayPal, Western Union |
| Monthly capacity | 500 units |
| Warranty | 6 months against manufacturing defects (including seal leaks and paint adhesion) |
Warranty does not cover damage from improper installation, accidents, or normal wear of moving parts (handles, hinges). But water leaks due to seal defect are covered.
7. Before You Order – We Need 3 Things
Machine serial number (or clear photo of the data plate)
Two photos – front view showing windshield shape, left side with door open
Any known differences (e.g., previous owner modified mounting brackets)
We will confirm compatibility and send a quote within 2 hours.
Don’t let a leaking, rusty cab ruin your XCMG 60DA – upgrade to a cab that fights moisture and wins.
